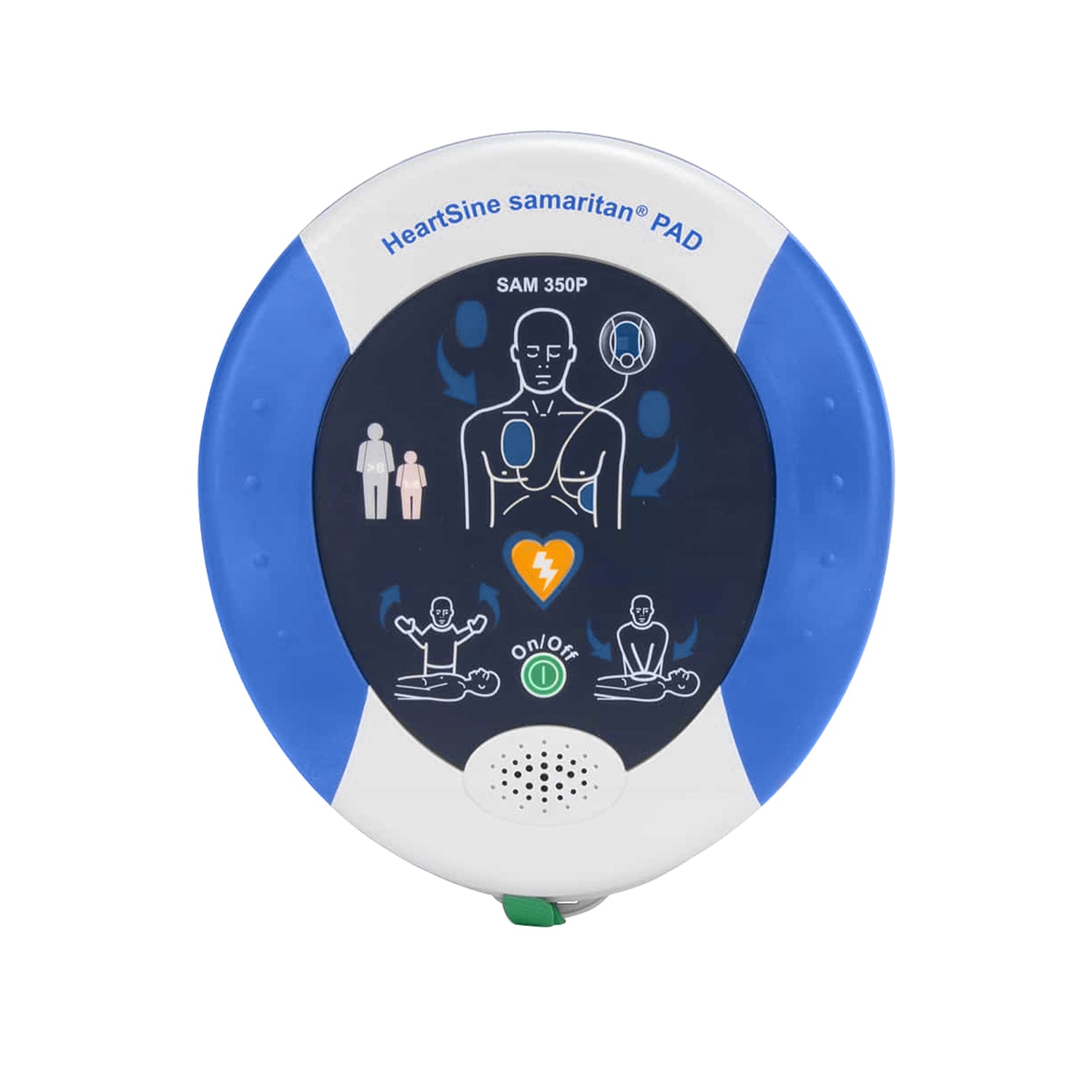

HeartSine Samaritan PAD 350P AED
HeartSine Samaritan PAD 350P AED

HeartSine Samaritan PAD 350P AED

Type: AEDs
Web ID: 12261
REQUEST QUOTE

Need help choosing?
Ask an Expert +1 (504) 701-3026

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

DETAILS

Portable, rugged defibrillator weighs less than three pounds

The HeartSine® Samaritan® PAD is an easy-to-use, portable Automated External Defibrillator (AED) that provides guided resuscitation. The AED comes with the highest dust and water protection, ensuring the unit will be ready for use in any emergency. The Pad-Pak™ integrated battery and electrode single-use cartridge can be replaced at the same time every four years, an easy and cost-saving alternative to most AED’s on the market.

For more information on the HeartSine® Samaritan® PAD 350P AED, available through Avante Health Solutions, contact an Avante representative today.

Features

  • Portable and lightweight PAD weighs only 2.4 pounds.
  • Provides the highest level of protection against dust and water for ruggedness in the field.
  • Utilizes proprietary electrode and biphasic technology in an escalating, low-energy waveform that automatically adjusts for difference in patient impedance.
  • User-friendly design provides visual and voice prompts to guide the rescuer during the resuscitation process, including CPR.
  • By just pressing two buttons, the HeartSine samaritan PAD offers simple, straightforward operation.
  • System Ready indicator flashes to show that the AED is ready for use.
  • Device automatically runs a self-check protocol each week.
  • Innovative Pad-Pak™ integrated battery and single-use electrode cartridge are replaced at the same time, every four years.

SPECIFICATIONS

Physical

  • Size: 8.0 in x 7.25 in x 1.9 in
  • Weight: 2.4 lbs

Defibrillator

  • Waveform: Self-Compensating Output Pulse Envelope (SCOPE) optimized biphasic escalating waveform compensates energy, slope and duration for patient impedance
  • Warranty: 8-year limited warranty

Patient Analysis System

  • Method: Evaluates patient’s ECG, signal quality, electrode contact integrity and patient impedance to determine if defibrillation is required
  • Sensitivity/Specificity: Meets IEC/EN 60601-2-4
  • Impedance Range: 20 - 230 ohms

Environmental

  • Operating/Standby Temperature: 32°F to 122°F
  • Transportation Temperature: 14°F to 122°F for up to two days. If the device has been stored below 32°F, it should be returned to an ambient temperature of between 32°F to 122°F for at least 24 hours before use
  • Relative Humidity: 5% to 95% (non-condensing)
  • Enclosure: IEC/EN 60529 IP56
  • Altitude: 0 to 15,000 ft

Energy Selection

  • Pad-Pak: Shock 1: 150J | Shock 2: 150J | Shock 3: 200J
  • Pediatric-Pak: Shock 1: 50J | Shock 2: 50J | Shock 3: 50J

Charging Time

  • New Battery: Typically 150J in < 8 seconds, 200J in < 12 seconds
