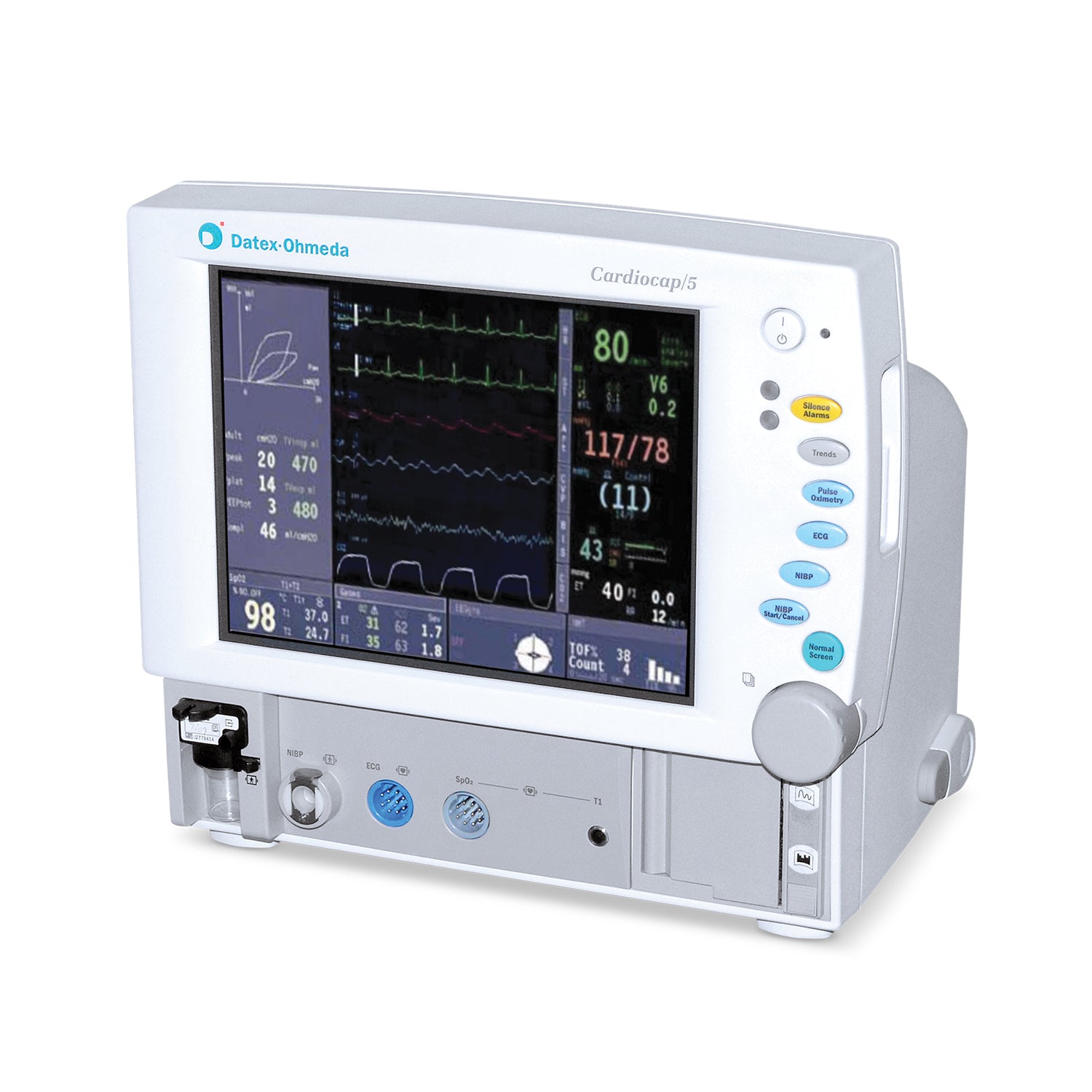

Datex Ohmeda Cardiocap 5
Datex Ohmeda Cardiocap 5

Datex Ohmeda Cardiocap 5

Brand: Datex-Ohmeda
Type: Monitors - Refurbished
Web ID: 960
Condition: Refurbished
Product Number: UQDX2105
REQUEST QUOTE

Need help choosing?
Ask an Expert +1 (504) 701-3026

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

DETAILS

The Datex Ohmeda Cardiocap 5 provides anesthesia agent monitoring with a small footprint to save valuable space.  The unit is designed for operating and recovery rooms.  Models differ, but many offer built in hemodynamic and airway gas detection, ECG, respiration, and heart rate measurement.  Ask your Avante representative about models currently in stock.

Cardiocap 5 Features

  • Small footprint bedside monitor with large 10.4" active matrix color display
  • Proven easy-to-use S/5 user interface
  • Shows up to 6 waveforms
  • Color-coded, prioritized alarms
  • 4 user-configurable modes for care-specific preconfigurations
  • Waveform snaphot to store and recall waveform samples for later analysis
  • 5 or 30-minute minitrends continuously on screen for quick historical view
  • On-line help for menu functions
  • 24-hour graphical trends of all parameters
  • Adjustable display brightness
  • Optional built-in, three-channel thermal array recorder
  • Built-in back-up battery to handle sudden power down situations
  • Wall mount, roll stand available for best workplace ergonomics
  • Compatible with Datex-Ohmeda S/5 Network and Central for monitor-to-monitor communication and centralized viewing

SPECIFICATIONS

Cardiocap Monitoring Parameters

  • Dimensions: 13.0" (W) × 8.7" (D) × 11.8" (H)/330 × 220 x300 mm
  • Weight: <11.2 kg, 24.8 lbs (F-MXG); <10.2 kg, 22.6 lbs (F-MX)
  • Power: 100-240 Vac ±10%, 60/50 Hz
  • Back-Up Battery: 15 min guaranteed, charging time typically 5 h
  • Graphical Trends: 20 min, 1, 2, 4, 6, 10, 12 and 24h
  • Numerical Trends: All parameters, sampled every 5 min and after NIBP measurement
  • Alarms: Adjustable high and low alarms
  • Operating Temperature: +10...+40 °C (50...104 °F)
  • Storage Temperature: –10...+50 °C (14...122 °F)
  • Atmospheric Pressure: 67-106 kPa (500-800 mmHg)

Screen

  • Display Size and Type: 10.4" LCD color
  • Number of Traces: Up to 6
  • Display Resolution: 640 x 480

ECG

  • Number of Channels: 3
  • Number of Leads: 3 or 5
  • ST Analysis: 3 channels, continuous

Heart Rate

  • Measurement Range: 30 to 250 beats per min (bpm)
  • Measurement Accuracy: ±5% or ±5 bpm, whichever is greater
  • Pacemaker Pulse Detection: 2 to 500 mV, 0.5 to 2 ms

Impedence Respiration

  • Measurement Method: Measurement uses ECG electrodes to measure the impedance changes as a result of breathing
  • Measurement Range: 4 to 120 breaths/min
